HB11’s hydrogen-boron laser fusion test yields groundbreaking results

We’ve covered Australian company HB11’s hydrogen-boron laser fusion innovations before in detail, but it’s worth briefly summarizing what makes this company so different from the rest of the field. In order to smash atoms together hard enough to make them fuse together and form a new element, you need to overcome the incredibly strong repulsive forces that push two positively-charged nuclei apart. It’s like throwing powerful magnets at each other in space, hoping to smash two north poles together instead of having them just dance out of each other’s way.

The Sun accomplishes this by having a huge amount of hydrogen atoms packed into a plasma that’s superheated to tens of millions of degrees at its core. Heat is a measure of kinetic energy – how fast a group of atoms or molecules are moving or vibrating. At these temperatures, the hydrogen atoms are moving so fast that they smack into each other and fuse, releasing the energy that warms our planet.

Most fusion reactor designs aim to replicate these conditions, by magnetically confining hydrogen atoms in a plasma, and then using gyrotrons and other specialized equipment to create small pockets of insane temperatures – over 100 million °C (180 million °F) – in which they hope they’ll get enough random collisions between nuclei to create a chain reaction. This is the basic idea underpinning the multi-billion dollar stellarator and tokamak projects that have dominated fusion research for decades.

HB11’s fusion process is a precision shot rather than a creation of super-high temperatures hoping for random atomic collisions.  HB11

HB11 is using a different approach that’s closer to a snooker shot. It doesn’t require huge amounts of heat, or tricky, radioactive fuels like tritium. Instead, it takes advantage of recent advances in ultra-high powered “chirped pulse amplification” lasers that can produce monstrous, unprecedented power levels over 10 petawatts.

An HB11 reactor would be a mostly empty metal sphere, with a “modestly sized” boron fuel pellet held in the middle, and apertures in two spots on the sphere for a pair of lasers. One laser, in combination with a capacitive coil, is used to establish a powerful kilotesla magnetic containment field for the plasma, and the second is used to massively accelerate hydrogen atoms through the boron sample. So you’re not heating things up in the hope that they’ll smack together at speed, you’re literally aiming the hydrogen right at the boron and using these bleeding-edge lasers to make it go so fast that it’ll fuse if it hits a nucleus.

Hydrogen-boron fusion doesn’t create heat, it merely creates “naked” helium atoms, or alpha particles, which are missing electrons and thus positively charged. HB11 plans to simply collect that charge to create energy, rather than needing to superheat steam and drive lossy turbines. No nuclear waste is created.

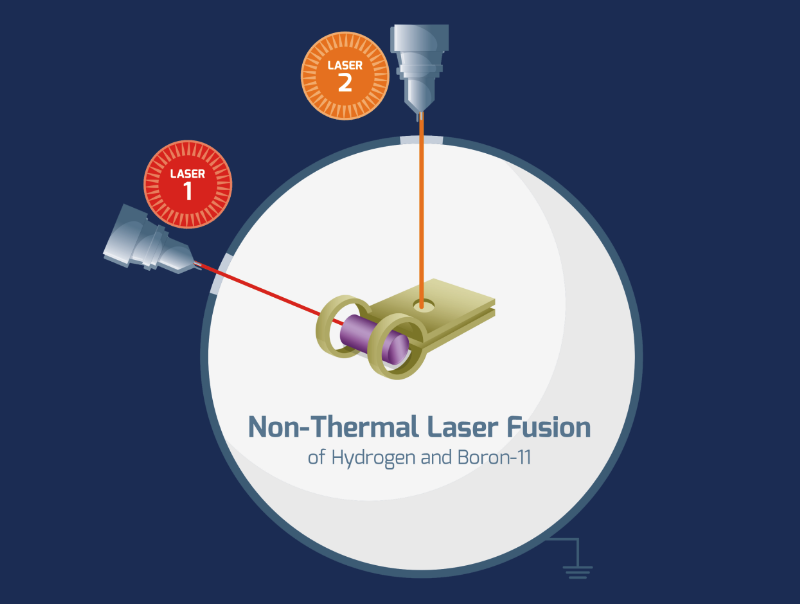

One laser creates a magnetic field to hold the plasma in place, the other fires hydrogen atoms into the boron sample at ultra-high speed.  HB11

Initial experiments on laser-triggered chain reactions returned reaction rates a billion times higher than anticipated, leading HB11 to claim in 2020 that it “stands a high chance of reaching the goal of net energy gain well ahead of other groups.”

“As we aren’t trying to heat fuels to impossibly high temperatures, we are sidestepping all of the scientific challenges that have held fusion energy back for more than half a century,” HB11 Managing Director Dr. Warren McKenzie told us at the time. “This means our development roadmap will be much faster and cheaper than any other fusion approach.”

You can see why this is a very exciting company to keep an eye on, and today’s news lends further academic credibility to the idea. In a new research study, led by HB11 Energy Lead Scientist Dimitri Batani and collaborator Daniele Margarone and funded by the Czech Republic’s Ministry of Education, Youth and Sports and the EU’s EUROfision consortium, HB11’s technology has been demonstrated at Osaka University’s Institute of Laser Engineering.

The study, published in the peer-reviewed journal Applied Sciences, showed what HB11 claims is a “world-first ‘material’ number of fusion reactions by a private company, producing ten times more fusion reactions than expected based on earlier experiments at the same facility.”

The experimental setup marshalled a short-pulse, high-energy, petawatt-class laser, tuned to “relativistic intensities” around 3 x 10¹⁹ W/cm². This was focused onto the surface of a chunk of boron nitride 0.2 mm thick. A Thompson parabola spectrometer was placed downrange to measure proton/ion plasma emissions, and plasma ions were deflected by parallel electric and magnetic fields to be recorded on an imaging plate. A nuclear track detector was use to count how many alpha particles were created via fusion.

“The results presented in this work,” reads the study, “provide the first proof of principle experimental demonstration of efficient α-particle generation from p–B fusion using a PW-class laser and the “in-target” geometry. The measured α-particle flux was ~10¹⁰/sr, thus one order of magnitude higher than previous results that were obtained with the same laser parameters but in the “pitcher–catcher” geometry. This achievement is in line with the experimental progress in p–B fusion that has been reported in the last 15 years, and confirms the advantage of triggering p–B fusion reactions using a direct irradiation scheme, at least in terms of α-particle flux.”

The researchers made a”crude” estimate that around 1.4 x 10¹¹alpha particles were created via fusion, noting that this was a “clear underestimation” due to diagnostic limitations. They noted that “the overall conversion efficiency of the process (laser to alpha particle energy) was still low,” at about 0.005 percent, but stated that the results “allowed the qualitative support of the basic mechanism,” and offered plenty of avenues for further research.

“The demonstration of fusion reactions alone is incredibly exciting,” said McKenzie in a press release. “But on top of this, the unexpectedly high number of reactions additionally gives us important information about how to optimize our technology to further increase the fusion energy we can create.”

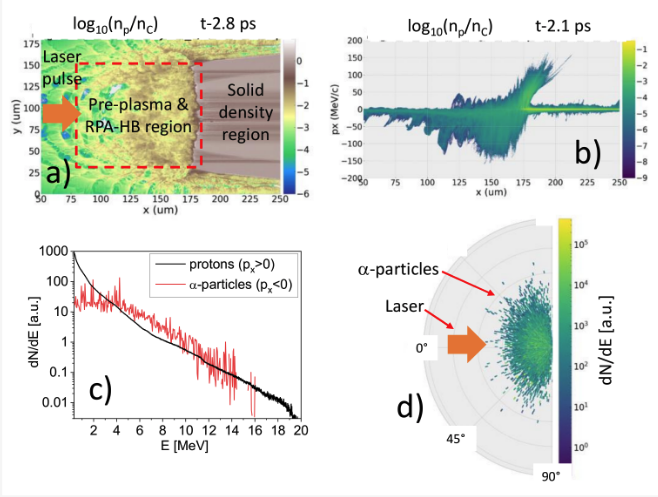

(a) The proton density map that was calculated by 2D PIC simulations at t = 2.8 ps (i.e., 1.2 ps after the highest intensity peak entered the highest density part of the target); (b) the proton phase space plot at t = 2.1 ps (the proton density is shown in units of plasma critical density); (c) the proton energy distribution (p_x > 0) and α-particle energy distribution at the target’s front side from PIC and Monte Carlo simulations, respectively; and (d) the α-particle angular distribution from the same simulation run.  Margarone et al

“HB11 Energy’s research demonstrated that its hydrogen-boron energy technology is now four orders of magnitude away from achieving net energy gain when catalyzed by a laser,” reads the press release. “This is many orders of magnitude higher than those reported by any other fusion company, most of which have not generated any reaction despite billions of dollars invested in the field. The results show great potential for clean energy generation: hydrogen-boron reactions use fuels that are safe and abundant, don’t create neutrons in the primary reaction so cause insignificant amounts of short-lived waste, and can provide large-scale power for base-load grid electricity or hydrogen generation.”

“With HB11 Energy being the only commercial entity to achieve fusion so far,” continues the release, “it is now the global frontrunner in the race to commercialize the holy grail of clean energy.”

The company also used the occasion as a chance to prod the Australian government for more local support and equipment – specifically asking for investment in a petawatt-class laser facility.

The study is open access in the journal Applied Sciences.
